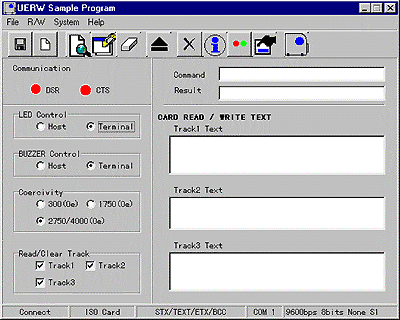

Read and Write UERW-301 Ultra compact ergonomically designed motorized magnetic card encoder. Allows for vertical and horizontal desk top installation. Software controllable card encoding Coercivity. Support ISO tracks 1,2 and 3. OEM version without house available. Specification Power Requirement: DC24V±5% Current consumption: 2.5A max. Communication: Complies RS232C Communication rate: 2400, 4800, 9600, 19200 bps Synchronizing method: Asynchronous (half duplex) Card standard: ISO 7811 Communication connector: D-sub 9 pin Installation position: Upright or sideways (in a certain direction) Dimension and Weight: 216 (D) x 47 (W) x 122 (H) mm. (excluding protruding parts), Approx. 1.3 kg Operation: Motorized drive belt method Environment: Operation : 5 to +40ºc, 35 to 85% RH Agency approval: FCC class B Read Card: Bi-directional, insert and/or eject Card transport speed: 20±5 cm/s  Coercive force: Read 300 to 650, 1750, 2750 to 4000 Oe Recording density: 210 bpi ± 20% (track 1 and 3), 75 bpi ± 20% (track 2) Recording method: Frequentry modulation method Recording capacity: 79 characters (track 1), 40 characters (track 2), 107 characters (track 3) (including STX, ETX and LRC) Accessories: AC adapter, rubber feet, cleaning card Option: Connection cable Card travel speed: 15-18 ips     Without case version is also available as OEM component   System requirement: Windows 95, 98, NT and XP. 1.5MB free disk space. 6MB of memory. Sample program supplied with UERW-301 motorized magnetic card encoder.   UERW-301 ISO Track 1, 2 and 3 Hi/Lo switch-able 300, 600, 2750-4000 Oe Motorized Encoder RS-232 Interface   PDF File   Inquire  $1175.00   RS-232 Cable (D-9 pin)  $12.00   Besides Credit card other payment methods available from Shopping Cart We ship worldwide HOME   Click here for Blank Card     Toll Free 1-866-547-8507 Phone 310-547-8501  Copyright©All Rights Reserved Contact us
