Monochrome Plastic Card Printer

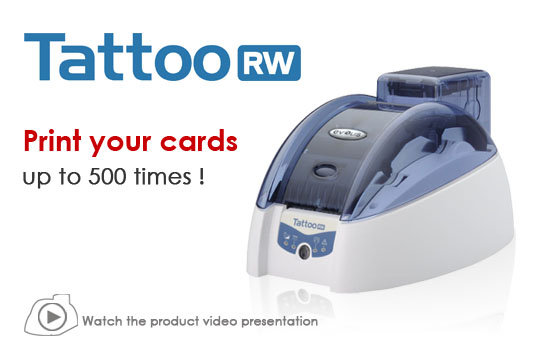

EVOLIS TATTOO REWRITE


The monochrome
rewritable card printer

A ribbon-free technology
Cards include a thermo-sensitive material that turns visible or vanishes depending on the applied temperature. The same card can thus be erased and reprinted up to 500 times.

Unrivalled freedom in card design
The 300 dpi standard resolution and the large print area (48 x 80 mm) provide you with unrivalled freedom in designing badges and cards, as graphical elements, images, texts and barcodes can easily be printed.


VERSATILE AND TALENTED:

With its 300 dpi standard resolution and large print area, the Tattoo Rewrite allows you to print best in class logos and pictures on top of texts and barcodes. According to your application, whichever you want to show becomes clearly visible.

The printer accepts cards from 0.25 to 0.76 mm (10 to 30 mil) without any adjustment.

A wide range of encoding features: Mag ISO / JIS2 and contactless smart card coupler can be combined to issue sophisticated cards.With its 300 dpi standard resolution and large print area, the Tattoo Rewrite allows you to print best in class logos and pictures on top of texts and barcodes. According to your application, whichever you want to show becomes clearly visible.



USER FRIENDLY:

The Windows driver and the one-button printer front panel make the Tattoo Rewrite easy to operate. The port monitor pops up printer status and incidents directly on your screen.

The innovative clamshell opening system allows quick and easy maintenance of the printhead and cleaning rollers.

If required, the printhead can be replaced in a snap with no tools nor additional adjustments.



POWERFUL CARD HANDLING:

The Tattoo Rewrite offers a permanent dual feeding mode: the next card to be printed can be taken either from the front mouth or from the rear side card feeder.

Completely enclosed, the card feeder is dust proof and keeps the cards in a dry and clean environment.

Constant pressure prevents the cards from jamming in the printer.



ASTUTE:

The accurate printhead management limits the overall temperature, ensuring durability and easy handling of the cards.

The driver allows to define erasing and non erasing areas, for instance to prevent heating on a chip.



COST EFFECTIVE:

The absence of ribbon, the reusability of the cards (up to 500 times) and its price positioning makes the Tattoo Rewrite the most cost effective printer in its category!

Specification

Print mode:

Monochrome direct thermal (black or blue) ­ Erasable Rewritable
Line mode for text, barcode and logo printing
Diffusion mode for image/photo printing

Print features:

Automatic gauging of card thickness
Automatic card loading with feeder or hand-feed
(card by card)
Erase/print cycle: 8 seconds
Print resolution: 300 dpi (11.8 dots/mm)
Maximum print area: 48 x 80 mm (1.90" x 3.15")

Windows™ Drivers:

Windows™ NT 4.0, 2000 and XP.

Warranty:

Printer: 1 year*
Print head: 1 year*

Card types:

Base material: PVC, PET (rewritable) and paper
(direct thermal)
Format: ISO CR-80 - ISO 7810
(53.98 x 85.60 mm - 2.12" x 3.37")
Number of erase/print cycles per card: up to 500

Other printer models:

Tattoo Rewrite Mag
Printer with HICO/LOCO magnetic stripe encoder - ISO 7811 or JIS2
Tattoo Rewrite Contactless
Printer with contactless smart card coupler - ISO 14443A / Mifare

Card Feeder Capacity:

300 cards (0.25 mm - 10 mil)
100 cards (0.76 mm - 30 mil)

Resident barcodes:

Code 39, Code 2/5 interleaved

Resident fonts:

Arial normal 100, Arial bold 100

Printer size:

Height: 166 mm (6.53")
Length: 290mm (11.42")
Width: 187mm (7.36")

Printer weight:

2,5 Kg (5.5 Lbs)

Connections:

USB and parallel Centronics ports (cables supplied), RS 232 on request

Power supply:

External poser supply: 110~230 Volts CA, 60~50 Hertz

Environment:

Min / Max operating temperatures: 15° / 30° C (59°/86° F)
Humidity: 20% to 65% non-condensing
Min / Max storage temperatures: -5° / +70° C (23° / 158° F)
Storage humidity: 20% to 70% non-condensing
Operating ventilation: free air
Regulatory compliance Safety: CE mark (EN60950)
EMC: CE mark B-Class / FCC B-Class

* - Clause governing the use of Evolis-approved supplies
Subject to observance of maintenance procedures



  TATTOO Rewrite Card Printer

Plastic Card Printer

  PDF File   Inquire

$1740.00

Base Unit


$2090.00

Mag


$2360.00

Contactless


$2710.00

Mag & Contactless Combo



  TATTOO Rewrite Additional Card Feeder Kit

Additional 100 Cards Feeder Kit

  Inquire
 $50.00



PLASTIC CARDS for TATTO REWRITE ONLY

CODE

ITEM

 REMARK

 PRICE

 QTY.

C5101
Blank PVC Rewritable Blue 30mil

100 cards/box

$200.00

C5103
Blank PVC Rewritable Blue 30mil
with HiCo Magnetic Stripe

100 cards/box

$210.00

C6103
Blank PVC Rewritable Black 10mil
with HiCo Magnetic Stripe

100 cards/box

$165.00



* You may order from any quantity, call or e-mail us for details.
