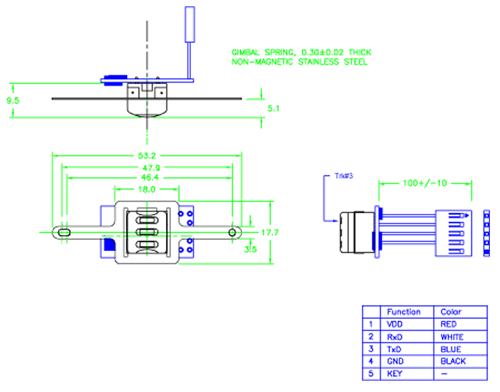

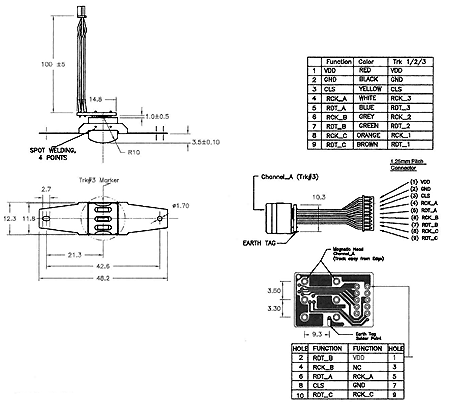

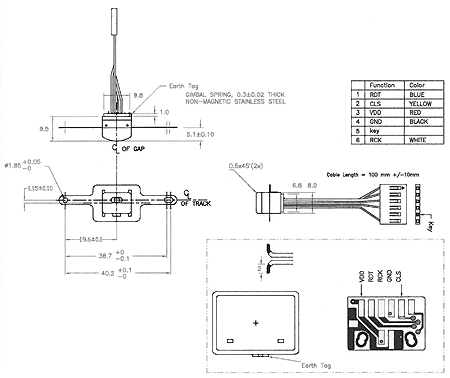

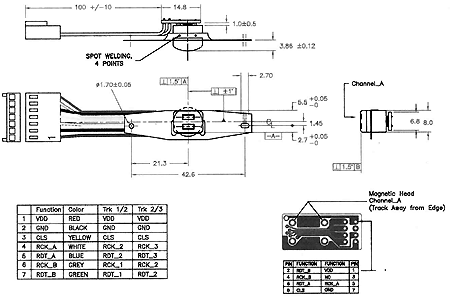

OEM Card Reader STP-421 STP-422 STP-423 STP-523R (RS-232 Interface) STP-421 Specifications 1 kHz Inductance 190mH ±25% D.C. Resistance 230ohm ±20% Insulation Resistance 50Mohm min. Gap Lenth 3um Core Track (E.T.W.) 1.50mm +0.20/ -0mm  Core Material Hard Permalloy Spring Rate 560 grams/mm ±20% Wire UL 1571 #28/044 (Sumitomo) Housing Housing Pin Pitch 2.54mm Operating Voltage 3.0 to 5.0V ± 10% Typical Current 1.5mA at 3.0V Max. Current 5.0mA at 5.0V Card Swipe Speed (Trk-2) 10cm/s to 150cm/s Card Swipe Speed (Trk-1/3) 10cm/s to 100cm/s  STP-421 $12.00 (1 to9 qty.) STP-422   Specifications 1 kHz Inductance 110mH ±25% D.C. Resistance 280ohm ±20% Insulation Resistance 50Mohm min. Gap Lenth 12.5um ± 1um Core Track (E.T.W.) 1.50mm +0.20/ -0mm  Core Material Hard Permalloy Spring Rate 560 grams/mm ±20% Wire UL 1571 #28/044 (Sumitomo) Housing A51H-07 (YH) or EQV Housing Pin Pitch 2.54mm Operating Voltage 3.0 to 5.0V ± 10% Typical Current 1.5mA at 3.0V Max. Current 5.0mA at 5.0V Card Swipe Speed (Trk-2) 10cm/s to 150cm/s Card Swipe Speed (Trk-1/3) 10cm/s to 100cm/s  STP-422 $14.00 (1 to9 qty.) STP-423 Specifications 1 kHz Inductance 110mH ±25% D.C. Resistance 280ohm ±20% Insulation Resistance 50Mohm min. Gap Lenth 12.5um ± 1um Core Track (E.T.W.) 1.50mm +0.20/ -0mm  Core Material Hard Permalloy Spring Rate 560 grams/mm ±20% Wire UL 1571 #28/044 (Sumitomo) Housing JWT A1251H02-09 or EQV Housing Pin Pitch 1.25mm Operating Voltage 3.0 to 5.0V ± 10% Typical Current 1.5mA at 3.0V Max. Current 5.0mA at 5.0V Card Swipe Speed (Trk-2) 10cm/s to 150cm/s Card Swipe Speed (Trk-1/3) 10cm/s to 100cm/s Plastic Card Guide Available! STP-423 $18.00 (1 to9 qty.) STP-523R RS-232 Interface     Specifications 1 kHz Inductance 110mH ±25% D.C. Resistance 280ohm ±20% Insulation Resistance 50Mohm min. Gap Lenth 12.5um Core Track (E.T.W.) 1.50mm +0.20/ -0mm  Core Material Permalloy Spring Rate 560 grams/mm ±20% Wire UL 1571 #28/044 (Sumitomo) Housing 0207H-06 (YH) Housing Pin Pitch 2.54mm Operating Voltage 3.0 to 5.0V ± 10% Typical Current 6.0mA at 3.0V Max. Current 12.0mA at 5.0V Card Swipe Speed (Trk-2) 10cm/s to 100cm/s Plastic Card Guide Available!  STP-523R $24.00 (1 to9 qty.)   PDF File   Inquire Besides Credit card other payment methods available from Shopping Cart We ship worldwide HOME       Toll Free 1-866-547-8507 Phone 310-547-8501  Copyright©All Rights Reserved Contact us
