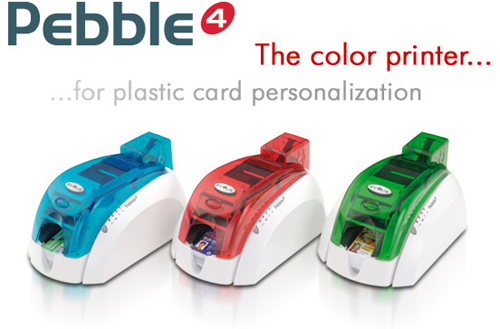

 Plastic Card Printer
|
|
Print any kind of single-sided badges!
Pebble 4 card printer is the ideal solution to print your badges on demand or in volume.
Pebble 4 is suitable for any type of application that requires single-sided printing of plastic cards such as:
Employee ID badges,
Secured access control badges,
Payment cards
Driver’s Licence
Leisure resort passes
Health cards
Student IDs,
Transport passes,
Loyalty cards,
Event cards
Support for Windows, Mac et Linux
Pebble is delivered with Windows Vista, XP and
2003 Server drivers. Mac and Linux drivers are
available for download from Evolis web site.
Plug and Print solutionEquipped with a USB port
and an optional Ethernet port, Pebble is delivered
with a USB cable and can be installed in a few
minutes. The Windows driver and the setup process
have been totally reshaped to improve the user
interface. eMedia Card Designer software is delivered
standard. From the very first time you use Pebble;
you can personalize and print badges in a jiffy.
3-Year warranty
The Pebble range of printers proudly carries
the stamp of Evolis’ strong commitment
to reliability, and therefore, benefits from
unmatched quality along with a pioneering 3-year
warranty.
Main specifications :
Single-sided printing
Color and Monochrome capabilities
Printing Speed: 24 s. /card (color - YMCKO), 3.6 s. / card (Monochrome)*
Encoding options : Magnetic stripes, contact
and contactless Smart cards
Supports Windows, MAC and Linux
3-Year Warranty
*Under specific conditions.
|
|
General printer specifications
Color printing module
300 dpi print head (11.8 dots/mm)
USB connection
Option for Ethernet TCP-IP connection
16 MB RAM
Detachable feeder with a capacity of 100
cards (0.76 mm - 30 mil)
Output hopper with a capacity of 50 cards
(0.76 mm - 30 mil)
1-Button and 4-LED control panel
Printer colors: Ocean blue, Fire red or Jungle
green
Print
modes
Color dye sublimation and monochrome thermal
transfer
Enhanced color management system for top
quality pictures
Edge-to-edge printing
Integrated ribbon saver for monochrome
printing
Printing
speed
Personalization throughput will depend
on card design and printer settings
Color (YMCKO): 150 cards/hour
Monochrome: up to 1000 cards/hour1
Supported
platforms
Windows™ XP, 2003 and Vista, 32 & 64
bits
Mac™ OS X v10.2, 10.3 and 10.4
Linux
Software
supplied
eMedia Card Designer Software for designing
and editing badges
Compatible with Windows™ XP, 2003 and
Vista
Connection to Microsoft™ Excel
databases
Warranty
Use Evolis Genuine products for best
performance and extended lifespan
of your printer
Printer, print head: 3-year warranty,
unlimited number of passes2 |
|
Card
Types: |
All
PVC, Composite PVC cards, PET, ABS1 and special
varnished1 cards |
|
Card
Format: |
ISO
CR-80 - ISO 7810 (53.98 mm x 85.60 mm - 3.375” x
2.125”)
ISO CR-79 (52,10 mm x 83,90 mm - 3.303” x
2.051”) option |
|
Card
Thickness: |
From
0.25 mm (10 mil) to 1 mm (40 mil) |
|
Output
hopper capacity: |
50
cards (0.76 mm - 30 mil),
150 cards (0.25 mm - 10 mil) |
|
Card
feeder capacity: |
Height:
192mm (9.25”)
Length: 447mm (17.59”)
Width: 237mm (9.33”) |
|
Printer
weight: |
5,9
Kg (13 Lbs) |
|
Connections: |
USB
(cable supplied) - Option for Ethernet TCP-IP |
|
Electrical: |
Power
supply: 100-240 Volts AC, 1.8 A, 50-60 Hertz,
Printer: 24 Volts DC, 3 A |
|
Environmental: |
Min/max
operating temperature:
15° / 30° C
(59° / 86° F)
Humidity:
20% to 65% non-condensing
Min/max storage temperature:
-5° / +70° C (23° / 158° F)
Storage humidity: 20% to 70% non-condensing
Operating ventilation: free air
|
1 - Under specific conditions
2 - Subject to observance of specific conditions and
use of Evolis genuine consumables.
|
PEBBLE 4 Card Printer Basic |
|
Click for Video
|
Single-sided
printing
Color and Monochrome capabilities
Printing Speed: 24 s. /card (color - YMCKO)
3.6 s. / card (Monochrome)*
Encoding options :
Magnetic stripes, contactand contactless Smart
cardsSupports Windows, MAC and Linux
3-Year Warranty
|
MSRP:$2090.00
|
CALL 4 PRICING
|
|
Please let us know your requirements based on the options below.
| Configurations |
Part #
|
Color
|
Product description
|
| BASIC
|
USB
|
PBL401OCU
|
Ocean Blue
|
Pebble Basic
Basic printer without option, USB
|
|
PBL401FRU
|
Fire Red
|
|
PBL401JGU
|
Jungle Green
|
| USB & Ethernet
|
PBL401OCH
|
Ocean Blue
|
Pebble Basic
Basic printer without option, USB & Ethernet
|
|
PBL401FRH
|
Fire Red
|
|
PBL401JGH
|
Jungle Green
|
|
PBL411OCH
|
Ocean Blue
|
Pebble Basic CR-79
Basic printer with CR-79 option, USB & Ethernet
|
| MAG
|
USB
|
PBL401OCU-M
|
Ocean Blue
|
Pebble Mag ISO
Printer with Mag ISO Dual HiCo/LoCo 3-track magnetic stripe encoder, USB
|
|
PBL401FRU-M
|
Fire Red
|
|
PBL401JGU-M
|
Jungle Green
|
|
PBL401OCU-J
|
Ocean Blue
|
Pebble Mag JIS2
Printer with Mag JIS2 Dual HiCo/LoCo magnetic stripe encoder, USB
|
|
PBL401FRU-J
|
Fire Red
|
|
PBL401JGU-J
|
Jungle Green
|
| USB & Ethernet
|
PBL401OCH-M
|
Ocean Blue
|
Pebble Mag ISO
Printer with Mag ISO Dual HiCo/LoCo 3-track magnetic stripe encoder, USB & Ethernet
|
|
PBL401FRH-M
|
FireRed
|
|
PBL401JGH-M
|
Jungle Green
|
|
PBL401OCH-J
|
Ocean Blue
|
Pebble Mag JIS2
Printer with Mag JIS2 Dual HiCo/LoCo magnetic stripe encoder, USB & Ethernet
|
|
PBL401FRH-J
|
Fire Red
|
|
PBL401JGH-J
|
Jungle Green
|
| SMART
|
USB
|
PBL401OCH-0S
|
Ocean Blue
|
Pebble Smart
Printer with Smart Contact Station, USB
|
|
PBL401FRH-0S
|
Fire Red
|
|
PBL401JGH-0S
|
Jungle Green
|
| MIFARE
|
USB
|
PBL401OCH-00CW
|
Ocean Blue
|
Pebble Mifare®
Printer Contactless with SpringCard Crazy Writer encoding module, USB
|
|
PBL401FRH-00CW
|
Fire Red
|
|
PBL401JGH-00CW
|
Jungle Green
|
|
|
