 Read Only
 |
- Programmable track data output
in screen comfiguration set up
- Firmware downloadable
- Read and emulate keyboard
data format to USB format
- Mulit-language support
- Read magnetic stripe cards
conform to ISO 7811, AAMVA
- Manual swipe, bi-directional
- Read high and low coercivity
magnetic stripes (300~4000 Oe)
- LED and beeper for reading
status
- Compatible with HID specification
Version 1.1
- Compatible with USB specification
Version 1.1
|
|
Specification |
|
Power Requirement: |
+5VDC ±10%
from USB port |
|
Consumption: |
35mA
Max, in normal condition |
|
Communication: |
Keyboard simulated
to USB interface |
|
Body Material: |
ABS
94V-0 |
|
Dimension and Weight: |
100 (L) x 34 (W)
x 28 (H) mm. Approx. 120g. |
|
Connector: |
USB
series "A" plugs |
|
Card Handling Method: |
Manual, swipe
bi-directional |
|
Environment: |
Operation
: -10 to 55ºc, 10 to 90% humidity
Storage : -30 to 70ºc, 10 to 90% humidity |
|
Agency approval: |
FCC class A, CE
class A |
|
Read card: |
ISO
7811, AAMVA |
|
Coercive force: |
Read 300-4000
Oe Magnetic Stripe card |
|
Read speed: |
Track
1:210 bpi, Track 2:75 bpi , Track 3:210 bpi |
|
Coercive
force: |
Read 300-4000
Oe Magnetic stripes |
|
Read speed: |
STD
card : 5~55ips, Jitter ±15% : 5~50ips, Amp.60% : 5~50ips |
|
Card thickness: |
0.76 1.2mm |
|
Read error
rate: |
< 0.5% |
|
Head life: |
500K pass life, 1M life optional |
| |
|
All specifications
subject to change without notice

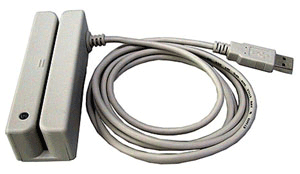

MSR-210U-12 |
 |
ISO Track 1 and 2 Reader
Keyboard wedge
USB Interface
|
|
|
MSR-210U-33 |
|
|
ISO Track 1, 2 and 3 Reader
Keyboard wedge
USB Interface
|
|
|
