 Read and Write
|
MSR-206-3HL
- Special
Price Now!! |
MSR-206-7HL
AMC-722 Compatible |
 |
- Manual swipe type dual head
reader/writer conforming to ISO 7811/1~6
- Dual head design allows single
swipe card write and read verify in one single swipe
- User programmable Hi/Lo (300~4000Oe)
coercivity writer. (software control)
- User programmable track format.
- CE, FCC, UL, certified.
- Software supports DOS, Win
3.1/95/98/Me/NT/2000/XP.
|
|
Specification |
|
Power Requirement: |
+24VDC ±5% |
|
Consumption: |
Typical
350mA Max. 600mA plus for each writing track |
|
Power supply: |
External switching
power 24V/2.2A |
|
Communication: |
Standard
RS232 signal levels |
|
Body Material: |
ABS 94V-0 |
|
Dimension and Weight: |
210.1
(L) x 65 (W) x 60 (H) mm. Approx. 1.5kg. |
|
Card Handling Method: |
Manual swipe,
Single direction |
|
Environment: |
Operation
: -10 to +55ºc, 10 to 85% humidity
Storage : -30 to +70ºc, 10 to 90% humidity |
|
Agency approval: |
FCC class B. CE
class B, UL, cUL |
|
Coercive force: |
Read
300-4000 Oe Magnetic Stripe card |
|
Read card: |
Track
1:210 bpi, Track 2:75/210 bpi, Track 3:210 bpi
Read/Write Track 2 at 210 bpi for Pass Book |
|
Read speed: |
STD
card : 5~55ips, Jitter ±15% : 5~50ips, Amp.60% : 5~50ips |
|
Write jitter: |
Interval < ±10%,
Sub-interval < ±12% |
|
Card thickness: |
0.76
1.2mm |
|
Error rate: |
Read < 0.5%, Write <
0.8% |
|
Head life: |
Min. 1000K
swipes for both read/write head |

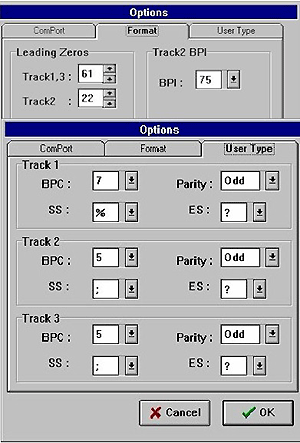

Software
MSR-206-3HL ---SPECIAL!! |
 |
ISO Track 1, 2 and 3
Hi/Lo switch-able 300, 2750-4000 Oe Encoder
RS-232 Interface
 New low price!
|
|
|
| MSR-206-3HL
USB I/F---SPECIAL!! |
|
|
ISO
Track 1, 2 and 3
Hi/Lo switch-able 300, 2750-4000 Oe Encoder
USB Interface
New low
price!
|
|
|
MSR-206-7HL : AMC-722
Compatible |
|
|
ISO Track 1, 2 and 3
Hi/Lo switch-able 300, 2750-4000 Oe Encoder
RS-232 Interface
New
low price!
|
|
|
