 Read Only
 |
- Port powered from RS232
- Programmable track data output
- Low power consumption
- Read magnetic cards conform
to ISO7811
- Read high or low coercivity
magnetic stripes (300-4000 Oe)
- Small footprint, light weight,
low cost
- Large coin drop
- Optional plastic and metallic
bezels
- Optional dual heads
- Optional LED
|
|
General Specification
|
|
Power Requirement: |
Port powered (RS232) |
|
Power Consumption: |
10mA
maximum |
|
Communication: |
RS-232 (TTL optional) |
|
Body Material: |
PC,
UL94V-0 |
|
Dimension
& Weight: |
60(W)
X 107(L) X 26(H) mm.
Approx. 65g |
|
Card handling
method: |
Manual
insertion, bi-directional |
|
Operating Condition: |
Operation:
-10șC ~ +55șC, 10~85% humidity
Storage: -30șC ~ +70șC, 10~90% humidity |
|
Agency Approval: |
FCC,
class A, CE class A, UL, cUL |
|
Card type: |
Magnetic
card as per ISO7811, AAMVA |
|
Bit Density: |
Track
1: 210 bpi, Track 2: 75 bpi, Track 3: 210 bpi |
|
Read speed: |
STD
card: 4~40 ips, Jitter ± 15%: 5~35 ips, Amp.
60%: 5~35 ips |
|
Card thickness: |
0.76
± 0.08 mm |
|
Read
error rate: |
< 0.5% |
|
Magnetic
head life: |
500K, 1M
life optional |
|
Card Media: |
Read 300~4000
Oe magnetic stripe |

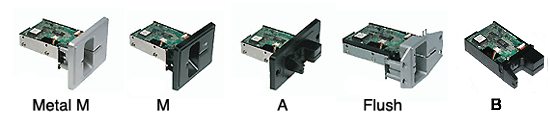

MSR-152 Metal M Bezel |
 |
3 Track magnetic card reader
Insertion type
|
|
|
MSR-152 Plastic M Bezel |
 |
3 Track magnetic card reader
Insertion type
|
|
|
MSR-152 A Bezel |
 |
3 Track magnetic card reader
Insertion type
|
|
|
MSR-152 Flush Bezel |
 |
3 Track magnetic card reader
Insertion type
|
|
|
MSR-152 B Bezel |
 |
3 Track magnetic card reader
Insertion type
|
|
|
