Data
Collector
GENUINE!
|

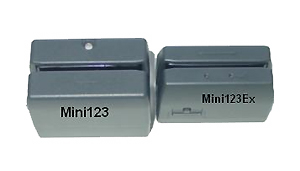

Mini123Ex is the Smallest Portable Data Collector
in the world. It's a battery-powered portable
magnetic swipe reader, which is specially designed
for magnetic stripe data collection anytime
and anywhere without computer.
Large memory can collect 3000 data. Built-in
Time clock indicates every transaction date
and time. Data is read from the card and kept
into the memory then downloaded to the computer.
|
Features
- 512
K bytes memory for storing 3000 data
- 3-track
version can collect all three tracks data
- Time stamp shows date and time with every
transaction
- Password Protection defends
user
- Auto Power Off is set by user
- Transfer
data to MSR206 / MSR505C directly
- Data
downloadable to the computer via USB
- Bi
- Directional
- Battery powered and low
battery indicated
- Read ISO format and
special format are available upon
request
- No programming required,
easy to use as 1- 2-
3
Applications
- Any movable data collection (Trade shows,
Racing events)
- Point of sales (Credit
card data collection)
- Law enforcement (DMV
card)
- Attendance (Student ID, Membership
card)
|

|
Specification |
|
ISO
Standard: |
Track
1: 210 bpi, 79 Alphanumeric Characters
Track 2: 75 bpi, 40 Numeric characters
Track 3: 210 bpi, 107 Numeric characters |
|
Memory
size: |
512K
stores up to 3000 records |
|
Time
stamp: |
Date:
YY/MM/DD ( 2002/04/12 => April 12, 2002
)
Time: HH:MM:SS (19:08:35 => 7:08:35pm)
Week: Sun.=>1, Mon.=>2, Tue.=>3 Wed.=>4,
Thurs.=>5, Fri.=>6, Sat.=>7
Example: 2002/04/12 19:08:35 6 => April 12,
2002, 7:08:35pm, Friday |
|
Interface: |
RS-232,
Half-Duplex. 8N1, 9600 bps |
|
Speed: |
Card
speed through the unit may vary from 3 ~50
ips |
|
Battery
Power: |
3.7v
220 mAH Rechargeable Battery |
|
Environment: |
Working
Temp: 0~55 Deg. C
Storage Temp: -10~55 Deg C
Humidity: 10~90% Relative |
|
Weight: |
Net 1.2
oz |
|
Software: |
Commands: Read
Card, Download Data, Search |
|
Dimensions: |
5L
1.6 x W 0.8 x H 1.2 inch ( L 4.7 x W 2.2 x
H 3.1 cm ) |

MINI-123EX |
|
Size only: L 4.7 x W 2.2 x H 3.1 cm
512 K bytes memory for storing 3000 data
3-track version can collect all three
tracks data
Time stamp shows date and time with every
transaction
Password Protection defends user
Auto Power Off is set by user
Transfer data to MSR206 / MSR505C directly
Data downloadable to the computer via
USB
Bi - Directional
Battery powered and low battery indicated
Read ISO format and special format are
available upon request
No programming required, easy to use
as 1- 2- 3
Only 1.2 oz
|
|
|
