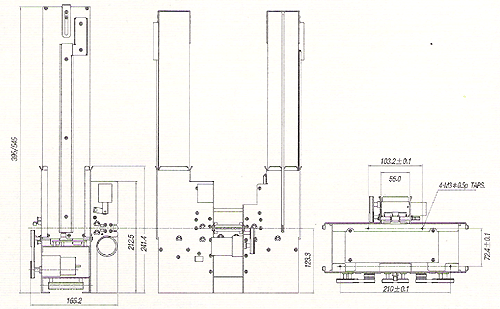

Card Collector CMT 1100 Series Applications Automatic Card Collecting Equipment Parking Equipment Highway Toll Collection System Mass Card Issuing System Access Control System and Etc.. · Double Capacity of Card Collecting with Two Cartridge · Tow Different Cards Collecting by One Unit · One Card Outlet for Two Different Cards Collecting · Error Cards are Captured into Error Card Bin · Automatic Baud Rate Change During RS-232C Interface (9600 bps - 19200 bpds) · RS-232C Interface · Intelligent Monitoring All the Process Cards Empty, Cartridge Presence Check Function with its Own Microprocessor · High Reliability with Simple and Robust Structure · High Speed Card Collecting · Fundamentally Prevents 2 Card Collecting with Unique Clutch · Easy Adjusting of Card Thickness Between 0.2mm and 1.0 mm Specification Applicable Card: Phone Card, Credit Card, Debit, IC, RF, Pre-Paid, Parking Card etc. Card Material: PVC, ABS, PET, etc. Max Card Width: 52 ~ 55 mm Max Card Length: 80 ~ 86 mm Max Card Thickness: 0.2 ~ 1.0 mm Interface: RS-232C or TTL Supply Voltage & Current Consumption: Without Load: DC 24V, Less than 0.15A With Load: DC 24V, Less than 1.5A  Operating Temperature: -5c ~ 45c   Operating Humidity: 20% ~ 90% RH   Place in Use: In the Cabinet   Options (Please ask us for details) Interface: RS-232 Capacity: 150, 200, 300, 500 or 600 cards Card Thickness: 0.2 T to 1.0 T     KYT-CMT 1100 Series   Inquire  from $1066.00 Basic Model  Please contact us for order Besides Credit card other payment methods available from Shopping Cart We ship worldwide HOME       Toll Free 1-866-547-8507 Phone 310-547-8501  Copyright©All Rights Reserved Contact us
