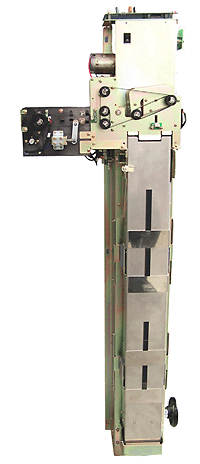

Card Issuing Machine CIM 8000 Series Card Issuing Machine for Magnetic, Contact & Contactless IC Card [FEATURES] · User Selectable Combined Structure - Magnetic & IC card reader/writer - RF Card Encoder & Antenna - Error Card Capture · Card Loading Capacity 0.2mm card loading capacity: 2,000 cards/stacker 0.76mm card loading capacity: 750 cards/stacker · One Card Trajnsportation Rail and Exit Slot even if it has 1 stacker · Easy adjustment of dispensable card gap (thickness) by 3 screws Gap adjustable: 0.2 to 1.00 mm · Card Capture function An error card is captured to Error Card Bin · RS-232C Interface · It's easy to control card stop, card issuing and card capture by microprocessor. · Card Empty and Card Low Loading Warning signals featured [APPLICATION] · Parking card vending machine · ID card issuing machine · Automatic card issuing machine · Ticketing vending machine · And more... Model Number Remarks CIM-8100 MS, Read/Write CIM-8200 MS + IC CIM-8300 MS + RF CIM-8400 MS + IC + RF CIM-8500 IC, Read/Write CIM-8600 RF only CIM-8700 IC + RF CIM-8000 Dispenser only  Option: Shutter HiCo Magnetic Track: 2 or 3 tracks 1500 Cards capacity (0.76mm card) Stainless Steel Cartridge Capture box 1000 or 1500 Cards Spare Cartridge   Specification Dimension: 508mm(W) x 213mm(L) x 1010mm(H) Weight: 18kg Input power: AC 220V Card Feeding Speed: mm/Sec ±10%  Operating Locus: in door use Only Ambient Temperature: Storage : -20 °C to 70 °C(No functional error to be found in 12 hours after returning to normal environment) Operating : 5 °C to 50°C (In 0°C to +5°C range, all specifications but 'Warped card' to be satisfied) Humidity: Storage : 0% to 95% RH(No functional error to be found in 12 hours after returning to normal environment) Operating : 5 % 90% RH(No Condensation)  Vibration: Amplitude 2mm, 10 to 50 Hz in X, Y, Z directions for 30min, 2G or less  Shock Endurance: 30G, 11ms  Ecoding Speed: 2.3 ~ 5 Sec/Card  Life Time: More than 500,000card passes(1pass : one forward and backward)  Error Rate: Less than 3/1,000 cycle(Test Card : KYT Standard)     KYT-CIM 8000 Series Cartridge Card Issuing Machine for Magnetic, Contact & Contactless IC Card   Inquire $Call US Basic Model  Please contact us for order Besides Credit card other payment methods available from Shopping Cart We ship worldwide HOME       Toll Free 1-866-547-8507 Phone 310-547-8501  Copyright©All Rights Reserved Contact us
