Card Dispenser

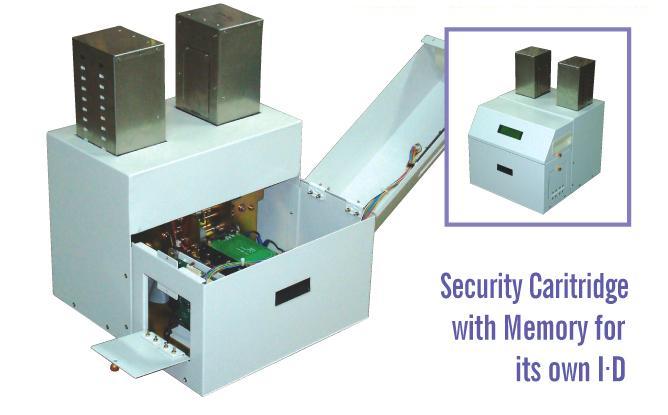

CIM5000 Series Security Cartridge


ˇ User Selectable Combined Structure
- With Two Cartridge Card Dispenser KYT-2600 built in
- Magnetic & IC card reader/writer
- RF Card Encoder & Antenna
- Error Card Bin
ˇ Double Capacity with Two Cartridge Card Dispenser-1000 pcs of 0.78mm Thickness Card
ˇ Tow Different Card Issuing is available with One Unit
ˇ ISO All 3 Tracks, Contact and Contactless IC Card
ˇ High Speed Card Issuing : 2~5 Sec/Card
ˇ ISO All 3 Tracks with Single Pass, Contact and Contactless IC Card
ˇ RS-232C Interface





Model Number

Remarks

CIM-5100
 MS, Read/Write

CIM-5200
 MS + IC

CIM-5300
 MS + RF

CIM-5400
 MS + IC + RF

CIM-5500
 IC, Read/Write

CIM-5600
 RF only

CIM-5700
 IC + RF

  Option:

Shutter
HiCo
Side door
300 or 500 Cards Spare Cartridge



Specification

Card Standard:

 ISO 7811, ISO 7816, Mifare Type A

Card Issuing Time:

 2.3 ~ 5 Sec/Card

Coercivity:

 300 Oe, 600 Oe, 1750 Oe~4000 Oe.

Interface:

 RS-232C

Power Supply:

 AC85 ~ 264V Free Voltage

Operating Temperature:

 0 ~ 50c

Humidity:

 20 ~ 90% RH (no condensing)



  CIM 5000 Series Security Catridge Series

  Inquire
  $CALL Basic Model

  Please contact us for order
