 Hybrid Reader
|
- EMV 2000 Level 1 compliance
- PC/SC compliance
- Read/Write smart cards conform
to ISO 7816
- Read magnetic stripe cards
conform to ISO 7811, AAMVA, DMV
- Support Memory and CPU cards
T=1 / T=0
- IC Card landing contact
- Built-in one SAM (Security
Access Module) socket
- Program firmware Upgradeable
- Coin drop
- Card Latching capability
- Power fail auto unlatching
- Support USI2, TLP-224 &
TLP-224 Turbol protocol
- Optional Bi-color LED indication
|
|
Specification |
|
Power Requirement: |
+12VDC
± 10% |
|
Power Consumption: |
250mA maximum |
|
Communication: |
RS-232 (USB optional) |
|
Body Material: |
PC + 20% GF + 6%(W)TEFR |
|
Dimension
& Weight: |
100(W) X 118.7(L) X 30.2(H) mm.
Approx. 125g |
|
Card handling
method: |
Manual insertion, bi-directional |
|
Operating Condition: |
Operation: -10º C ~ +50º C, 15~90% humidity
Storage: -30º C ~ +70º C, 10~90% humidity |
|
Agency Approval: |
FCC, class A, CE class A, UL, cUL, BSMI class
B |
|
Card type: |
Magnetic card as per ISO 7810, 7811/1-6, AAMVA
IC card as per ISO 7816/EMV, CPU/Memory card, PC/SC compliance |
|
Read capability: |
Magnetic stripe single, dual or triple track
of low/high coercivity (300-4000 Oe) |
|
Read speed: |
STD card: 4~40 ips, Jitter ± 15%: 5~35
ips, Amp. 60%: 5~35 ips |
|
Card thickness: |
0.76 ± 0.08 mm |
|
Read
error rate: |
<
0.5% |
|
Magnetic
head life: |
500K,
1M optional |
|
IC card contact
life: |
500K
times minimum |
|
IC card contact
resistance: |
100m
ohm maximum |
| |
|

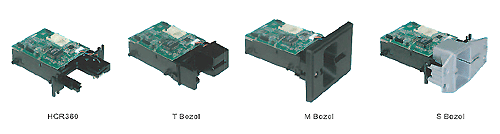

HCR-360 Basic |
 |
Hybrid smart/magnetic card
reader
RS-232 Interface
|
|
|
HCR-360 T Bezel |
 |
Hybrid smart/magnetic card
reader
RS-232 Interface
T Bezel
|
|
|
HCR-360 M Bezel |
 |
Hybrid smart/magnetic card
reader
RS-232 Interface
M Bezel
|
|
|
HCR-360 S Bezel |
 |
Hybrid smart/magnetic card
reader
RS-232 Interface
S Bezel
|
|
|
