 Hybrid
Reader
|
- EMV 2000 Level 1 compliance
- Read/Write smart cards conform
to ISO 7816
- Support Memory and CPU cards
T=1, T=0
- Read Magnetic cards conform
ISO 7811
- IC card landing contact, 300K
contact life
- Firmware upgradeable
- Slim type design

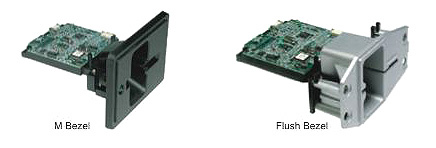

- Optional plastic and metal
bezels
|
|
Specification |
|
Power Requirement: |
+5VDC
±5% regulated
10mA maximum, Magnetic card
90mA maximum, Magnetic card and IC card |
|
Comunication: |
RS-232 (TTL Option) |
|
Body Material: |
PC
+ 20% GF + 6% Teflon 94V-0 |
|
Dimension
& Weight: |
67(W) X 108(L) X 11(H) mm. Approx. 56g |
|
Card handling
method: |
Manual
insertion, bi-directional |
|
Operating Condition: |
Operation: -10șC ~ +55șC, 10~85% humidity
Storage: -30șC ~ +70șC, 10~90% humidity |
|
Agency Approval: |
FCC/CE
class A, UL, cUL |
|
Card type: |
Magnetic card as per ISO 7811, AAMVA
IC card as per ISO 7816/EMV, CPU/Memory card |
|
Read capability: |
Magnetic
stripe single, dual or triple track of low/high coercivity (300-4000
Oe) |
|
Read speed: |
Track1: 210 dpi, Track2: 75dpi, Track3: 210dpi
STD card: 4~40 ips, Jitter ± 15%: 5~35 ips, Amp.
60%: 5~35 ips |
|
Card thickness: |
0.78
± 0.08mm |
|
Read
error rate: |
<
0.5% |
|
Magnetic
head life: |
Minimum 500K pass
life, 1M pass life optional |
|
IC card contact
life: |
300K |
|
IC card contact
resistance: |
100m ohm maximum |
| |
|
 HCR-350C/360 |
 |
Hybrid smart/magnetic card
reader
RS-232 Interface
RS232 format TTL level optional
*Please mention about bezel
type when you place order.
| $CALL |
|
|
|
|
|
