Plastic Card Printer
|
Specification |
|
Print Method: |
Color Dye Sublimation
and Monochrome Thermal Transfer
Edge-to-edge printing standard |
|
Print Speed: |
150
cards/hour in full color (YMCKO), 1 side
125 cards/hour in full color (YMCKO/K), 2 sides
Up to 1000 cards/hour 1in monochrome, 1 side
Up to 350 cards/hour in monochrome, 2 sides |
|
Resolution: |
300 dpi |
|
Card Types: |
All
PVC, Composite PVC, PET, ABS and special varnished cards |
|
Card Format: |
ISO CR-80 - ISO
7810 - (53.98mm x 85.60mm - 3.375" x 2.125") |
|
Card Feeder Capacity: |
300
cards (0.25mm-10mil)
100 cards (0.76mm-30mil) |
|
Output Hopper Capacity: |
300 cards (0.25mm-10mil)
100 cards (0.76mm-30mil) |
|
Printer Dimensions: |
Height: 235mm (9.25")
Length: 447mm (17.59")
Width: 237mm (9.33") |
|
Printer Weight: |
7.4 Kg (16.31lbs) |
|
Interface: |
Centronics Parallel (cable
supplied)
USB port (cable supplied) |
|
Power Supply: |
110-230
Volts CA, 60-50 Hertz |
|
Environmental: |
Min / Max operating temperatures:
15°C / 30°C
Humidity : 20% to 65% non-condensing
Min / Max storage temperatures : -5°C / +70°C
Storage humidity : 20% to 70% non-condensing
Operating ventilation : free air. |
|
Software
supplied: |
eMedia Card
Designer Software for design and editing badges
Compatible with Windows NT 4.0 / 2000 and Xp |
|
Windows drivers: |
For Windows NT 4.0 /
2000 and Xp |
|
|
Ribbon
Types
Monochrome: 1000
cards/roll (black, blue, red, green, white, gold, silver and
scratch off)
BlackWAX monochrome ribbon (for ABS and special varnished cards):
1000 cards/roll
2 panel black monochrome ribbon (KO): 500 cards/roll
5 panel color ribbon (YMCKO): 200 cards/roll
Half-panel color ribbon (YMCKO): 400 cards/roll
6 panel color ribbon (YMCKO/K): 200 cards/roll
Hologram ribbon: 350 cards/roll |
Option
Serial port (available upon
study)
Manual card feeder
100-card additional feeder
Cleaning kits
Dualys Mag
Printer with HICO / LOCO magnetic
stripe encoder - ISO 7811
Dualys Smart
Printer with smart card contact station - ISO 7816-2
Dualys Contactless
Printer with contactless smart card reader/encoder (available
upon study)

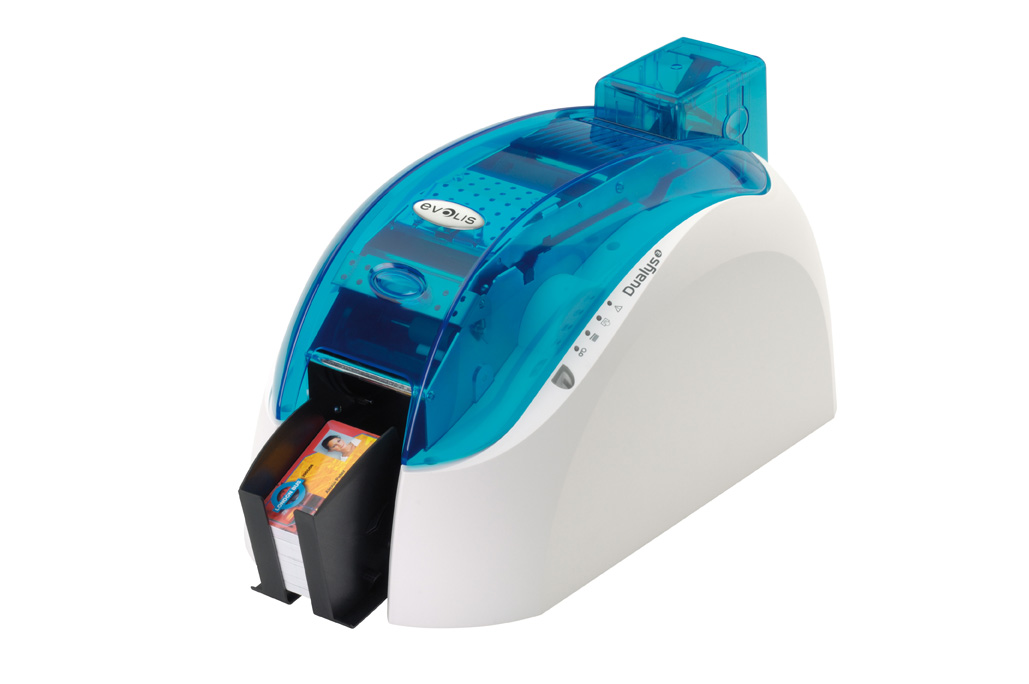

Dualys Card Printer |

|
Plastic Dual-sidedCard Printer

|
|
Dualys Additional Card Feeder Kit |
|
 |
|
|
