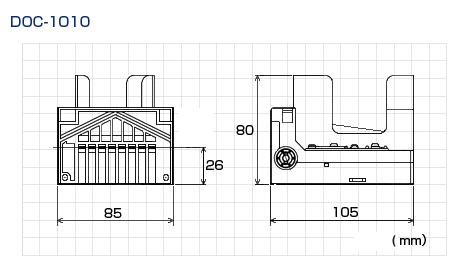

Micro Card Hopper DOC 1010 Series PET CARD The Micro Card Hopper DOC-1010 pet card dispenser is one of the smallest in   it's class. It secures high reliability , and performs accurate conveyances. Options 300 cards hopper Specification Power Supply DC 24V Outer dimension Width: 85mm Depth: 105mm Height: 80mm Receipt Capacity 200 cards and 300 cards Expenditure Port 26mm (from the bottom face) Weight 350g Paper Weight 220g     200 cards type (.22mm card) 300 cards type (.22mm card) 1 Power supply DC 24V ± 10% 2 Power Consumption 0.1A (at waiting) 0.2A (ave operation) 1.2A (max at operation) 3. Dispense Speed Less than 1.5 second / card 4. Capacity of Card Stacker. Default setting->   Default setting  -> DOC-1010: 0.22 mm (.0008in)200 pcs. 0.27 mm(.010in)160 pcs. 0.45 mm(.0177in)-95 pcs. 0.78 mm(.030in)-50 pcs. DOC-1020 0.22 mm:=300 pcs. 0.27 mm:=250 pcs. 0.45 mm:=150 pcs. 0.78 mm :=80 pcs. 5. Insulation Resistance More than 10MΩ between chassis  and terminal (DC 100V Resistance Insulation  Tester must be used) Voltage 1 minute trouble – free by impressing AC 250V between chassis and terminal 6. Environment Temperature: -10 ~ 60°C (operation) -20 ~ 60°C (store) Humidity: 5 ~ 95% (no condensation) 7. Weight (empty) DOC-1010: 350 g (approx.) DOC-1020: 380 g (approx.) Weight Bar: 220g (0,-22g) 8. Inclination. Shall be mounted within 3° of both vertical and horizontal alignment. 9. Outline dimensions See attached drawings 10. Other RoHS       DOC-1010 Series   Inquire   $ CALL   Please contact us for order Besides Credit card other payment methods available from Shopping Cart We ship worldwide HOME       Toll Free 1-877-219-0044 Phone 310-547-8501   Copyright©All Rights Reserved Contact us
