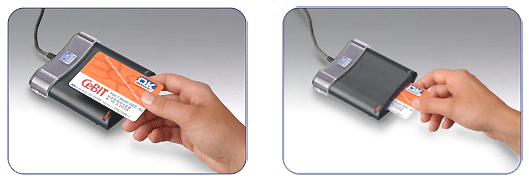

The CardMan® 5321 represents
the ideal combination of contact and contactless technology in
a single device. The housing design is optimized for advanced
user convenience in contactless applications.
The improved contactless field
provides a higher transmission speed of up to 848 kbps depending
on the contactless card used. As with the CardMan® 5121,
it supports three ISO standards for contactless cards (ISO 14443
A/B and 15693), and the ISO 7816 and EMV (Europay, MasterCard,
Visa) industry standards for contact cards.
The CardMan® 5321 allows users to experience the convenience,
speed, and security of contactless technology for applications
including log-on to Windows®, networks, websites, and applications
or the secure storage of user names, passwords, and personal
information. The use of contactless smart card technology for
PC-linked applications is limited only to your imagination!
Contactless Smart Cards Supported
· Philips: MIFARE®, DESFire®, MIFARE ProX®,
and i.code
· HID: iCLASS®
· Texas Instruments: TagIT®
· ST Micro: x-ident, SR 176, SR 1X 4K
· Infineon: My-d (in secure mode UID only)
· Atmel: AT088RF020
· KSW MicroTech: KSW TempSens
· JavaCard: JCOP in RSA mode
Following features make the CardMan® 5321 the perfect answer
to the increasing demands of many applications:
|
|
Specification |
|
Interface: |
USB 2.0 |
|
Contactless Standards: |
ISO14443A,
ISO14443B, ISO15693 |
|
Cable length: |
180cm/ 70.9" |
|
Power Supply: |
USB
bus powered |
|
Card Contacting
Unit: |
100.000
insertion cycles |
|
Card Power supply: |
60 mA |
|
Status indicator: |
Duo-LED |
|
Transmission Speed
contact interface: |
with
PC: 12 Mbps (USB 2.0 Full Speed).
with Contact Card: up to 420 Kbps |
|
Transmission Speed
contactless interface: |
with
PC: 12 Mbps (USB 2.0 Full Speed)
with Card: up to 848 Kbps |
|
Protocols: |
T=0, T=1, 2-wire: SLE4432,
SLE4442 (S=10), 3-wire: SLE4418, SLE4428 (S=9), I2C (S=8), SLE
4404
T=CL
|
|
Smart Cards: |
Supports
5V, 3V and 1,8V Smart Cards |
|
Drivers: |
PC/SC, CT-API,
Sync-API |
|
MTBF: |
500,000h |
|
Operating
Systems: |
Windows
98/ME
Windows 2000
Windows XP
Windows 2003 Server
Windows XP64bit (IA64, AMD64, EM64T)
Linux |
|
Compliance: |
RoHS, WEEE |
|
Certifications: |
PC/SC, Microsoft
WHQL, EMV 2000 |
|
OEM: |
OEM-Logo possible, Customer
specific colors possible |
CARDMAN 5321 RFID |
 |
The CardMan® 5321 represents
the ideal combination of contact and contactless technology in
a single device. The housing design is optimized for advanced
user convenience in contactless applications.
|
|
|
