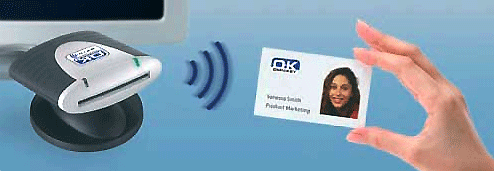

The CardMan® 5125 supports
125 kHz HID PROX technology while providing ISO 7816 and EMV
(Europay, MasterCard, Visa) support for contact cards. It is
the ideal device for HID PROX-based contactless physical access
technology solutions as well as all contact-related applications.
Based on a 125kHz contactless
interface that reads the unique number from existing HID proximity
cards the CardMan® 5125 allows organizations to implement
new PC-linked applications without the need to re-badge
cardholders. Many organizations use an HID proximity card for
instance for building access and as a corporate or student ID.
The dual interface feature economically supports end-user environments
where both HID proximity and contact smart card technology may
be needed.
As the reader complies with PC/SC and Microsoft® WHQL
and has proximity capability it is easy to integrate.
Supported Applications
The CardMan® 5125 allows users to experience the convenience,
speed, and security of HID proximity technology for applications
including log-on to Windows, networks, websites. HID proximity
technology and the CardMan® 5125 can be used for virtually
any PC-linked contact card and HID PROX supporting application.
Following features make the CardMan® 5125 the answer
to the increasing demands of your applications:
|
|
Specification |
|
Interface: |
USB
2.0 |
|
Contactless Transmission: |
HID PROX 125kHz |
|
Cable length: |
180cm/ 70.9" |
|
Power Supply: |
USB bus powered |
|
Card Contacting
Unit: |
100.000
insertion cycles |
|
Card Power supply: |
60
mA |
|
Status indicator: |
Duo-LED |
|
Transmission Speed: |
with PC: 12 Mbps (USB 2.0 Full Speed).
with Contact Card: up to 420 Kbps |
|
Protocols: |
T=0, T=1, 2-wire: SLE4432, SLE4442 (S=10), 3-wire:
SLE4418, SLE4428 (S=9), I2C (S=8), SLE 4404 |
|
Smart Cards: |
Supports
5V, 3V and 1,8V Smart Cards |
|
Drivers: |
PC/SC,
CT-API, Sync-API |
|
MTBF: |
500,000h |
|
Operating
Systems: |
Windows 98/ME
Windows 2000
Windows XP
Windows 2003 Server
Windows XP64bit (IA64, AMD64, EM64T)
Linux |
|
Certifications: |
PC/SC,
Microsoft WHQL, EMV 2000 |
|
OEM: |
OEM-Logo possible,
Customer specific colors possible |
|
Option: |
heavy
standing base |
