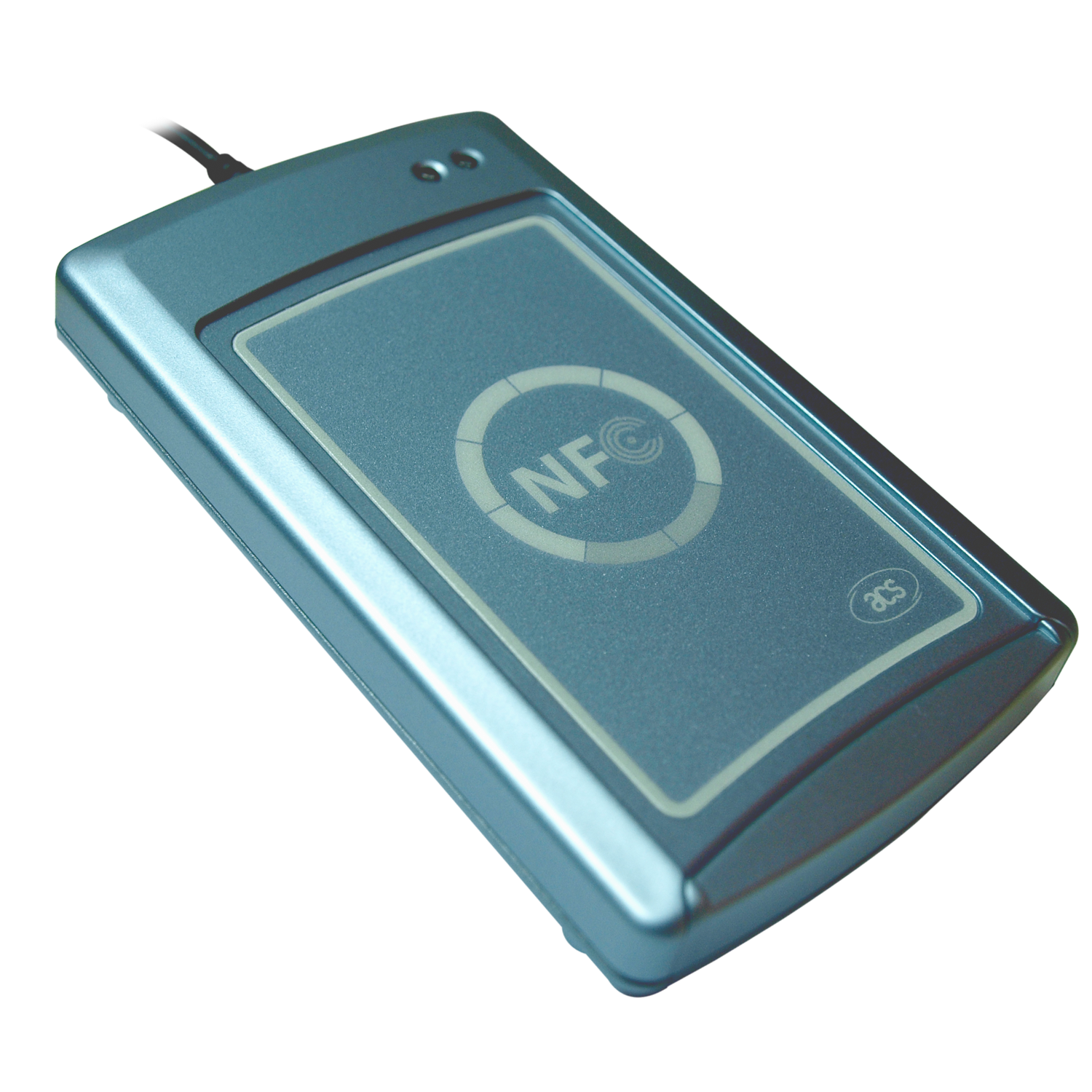

The ACR122S NFC Contactless Smart Card Reader is the serial interface reader
in the ACR122 family developed based on the 13.56 MHz Contactless (RFID)
Technology and compliant with the ISO/IEC 18092 Standard for Near Field
Communication (NFC). It supports Mifare®, ISO 14443 Type A and B, FeliCa and NFC
cards and devices, including all three NFC modes (reader, card emulation and
peer-to-peer) and four types of NFC tags.
ACR122S is a plug and play device which does not require any driver
installation. It comes with a built-in ISO 7816 SAM slot for enhanced security,
plus a buzzer and two LEDs for rich user interaction. The reader can also read
and write faster and more efficiently by making use of up to 424 Kbps for tag
access. The proximity operating distance of ACR122S is up to 5 cm, depending on
the type of tag in use.
ACR122S is also available in module form for easy integration into bigger
machines, like POS terminals, physical access devices and vending machines.
Typical applications of the ACR122S reader include e-payment, e-ticketing for
events and mass transit, toll road fare collection and network authentication.
